Industrial Energy Meter

Robust and Intelligent Energy Data Acquisition System

Market Sector

Energy
Industries
Manufacture
Mining

Product Type

Sensor
Edge Device
Gateway/Bridge

Overview

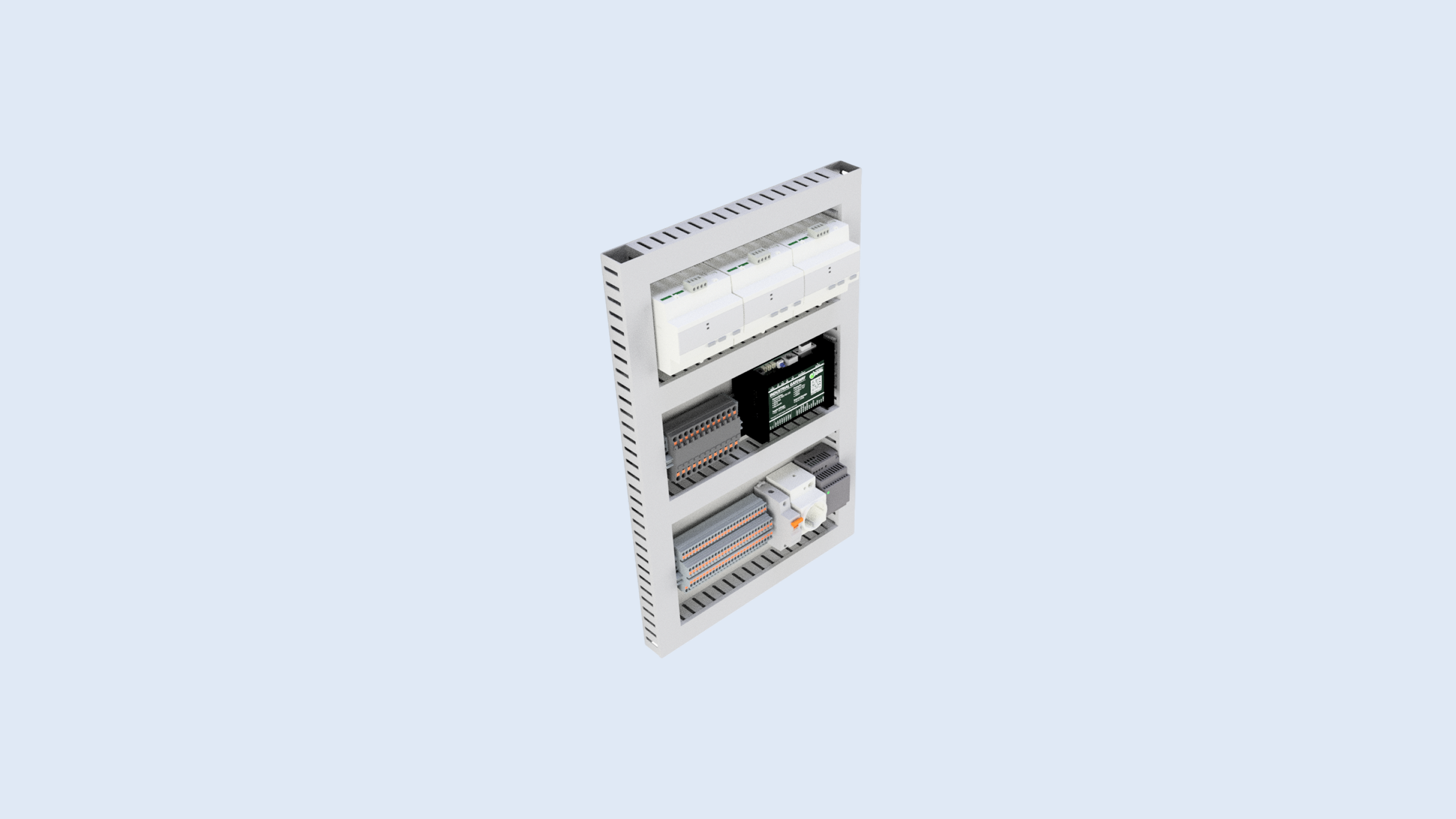

The Industrial Energy Meter is a robust and intelligent energy data acquisition system, built to bridge traditional electrical infrastructure with modern IoT platforms. At its core, it combines a high-efficiency ARM Cortex-M4 processor for precise energy measurement and an ESP32 module for wireless connectivity and edge computing tasks.

Designed to monitor both single-phase and three-phase electrical systems, this gateway supports voltage inputs up to 575V, current inputs from 20mA to 6A, and delivers highly accurate energy readings compliant with international metering standards such as IEC 62053-22 and EN 50470-3.

With RS485 (Modbus RTU) for legacy system integration, and Wi-Fi + MQTT (Azure IoT Hub) for cloud-based analytics, the gateway ensures seamless data flow across industrial and digital ecosystems. Its rugged design and compact form make it ideal for factories, smart grid deployments, and energy monitoring systems seeking precise, scalable, and connected solutions.

Specification

Dimension:

±40cm x ±60cm x ±18cm

Weight:

±6.5kg

Microcontroller:

- ARM 32-bit Cortex-M4 80MHz, 256KB Flash, 64 KB SRAM - ESP32 240MHz, 4MB FLash

Operating temperature:

5°C to +50°C

Supply:

Jack5.5 12VDC

Maximum Input Voltage:

332 VL-N / 575 VL-L

Phase:

1PH/ 3PH

Frequency:

50Hz/ 60Hz +- 10%

Current Input:

1A or 5A

Measured Current:

20mA – 6A

RS485:

Modbus RTU

Wifi:

2.4GHz, 802.11 b/g/n

MQTT:

Azure IoT Hub

Sampling Rate:

32 samples/cycle

Type of Measurement:

- Active, Reactive, Apparent Energy (Max: 99999999 MWh) - Rated Current: 5A, 1A (1…32767000 mA) - Rated Voltage: 100-277V, 173-480V - Frequency: 60Hz, 50Hz

Accuracy:

- Class 0.5S active energy conforming to IEC 62053-22 - Class 0.5S active energy conforming to IEC 61557-12 - Class C active energy conforming to EN 50470-3
