Industrial Gateway

Feature-rich and Space-efficient Edge Device

Market Sector

Energy
Industries
Manufacture
Mining
Public Sector
Plantation/Agri/Forestry

Product Type

Edge Device
Gateway/Bridge

Overview

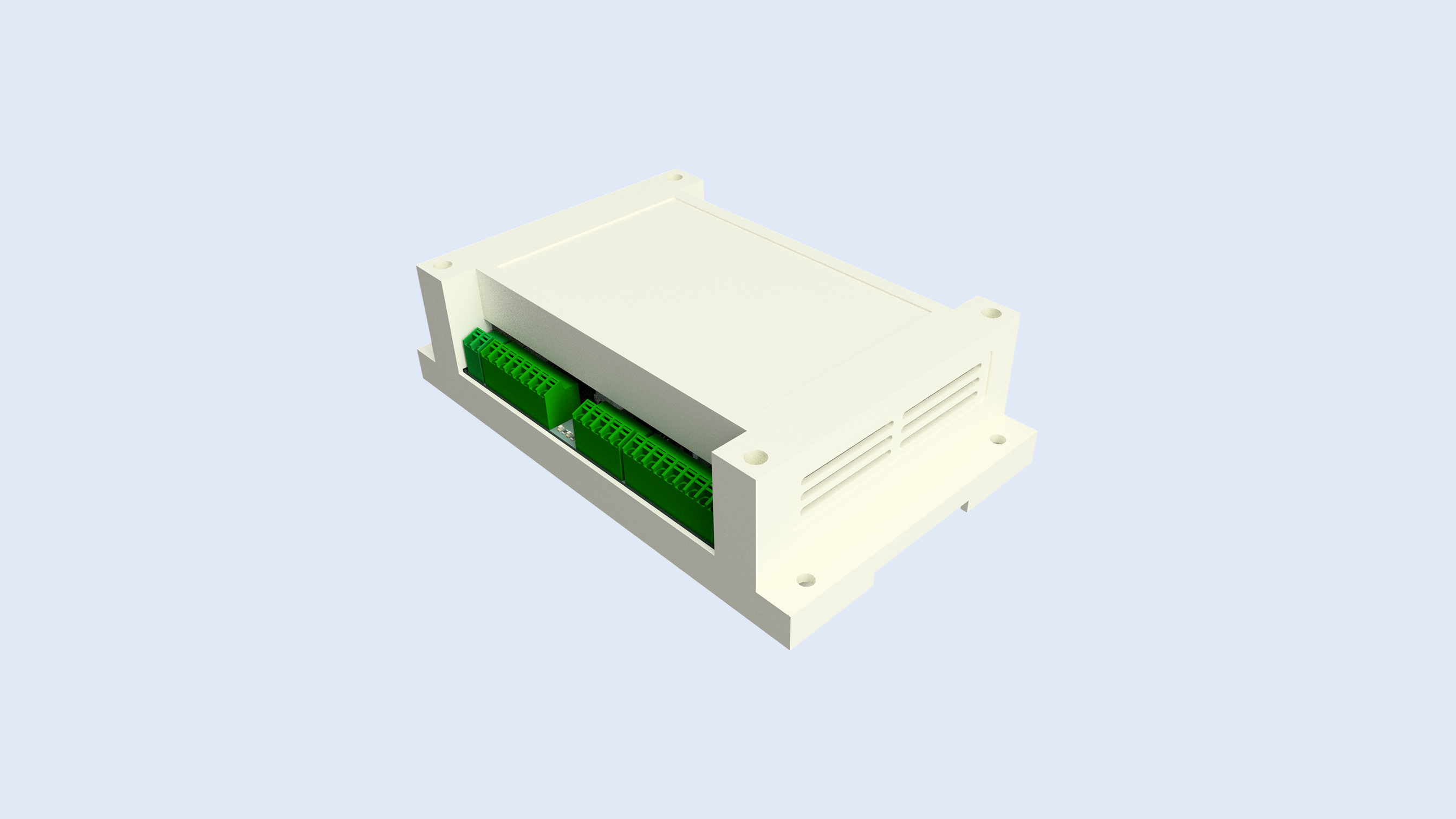

The Industrial Gateway is a feature-rich and space-efficient edge device designed for industrial IoT applications that demand powerful interfacing, flexible power options, and seamless connectivity. Built with a dual-processor architecture, combining the real-time control of ARM Cortex-M4 with the networking capabilities of the ESP32, it supports both wired and wireless communication to enable smart automation and remote telemetry.

Its versatile I/O suite—including isolated industrial inputs/outputs, analog/digital channels, UARTs, ADCs, and CAN-Bus—makes it ideal for bridging sensors, controllers, and legacy machines into modern monitoring and control systems. With multi-source power support (battery, USB, DC jack, or solar), this gateway is tailored for both fixed installations and off-grid deployments.

Built-in support for Ethernet, RS-232/RS-485, and SD card storage, combined with compact size and light weight, makes it the perfect choice for smart agriculture, industrial automation, energy monitoring, remote asset tracking, and other demanding IoT environments.

Specification

Dimension:

±90mm x ±145mm x ±40mm

Weight:

±165g

Microcontroller:

- ARM 32-bit Cortex-M4 80MHz, 256KB Flash, 64 KB SRAM - ESP32 240MHz, 4MB FLash

Operating temperature:

5°C to +50°C

Battery:

3.1V - 4.2V

USB:

5V

Jack5.5:

12VDC

Solar Cell:

4V - 13.5V

Wifi:

2.4GHz, 802.11 b/g/n

Bluetooth:

Classic 4.2 (BR/EDR)

I/O:

14 GPIO Pins, 1 Industrial DI (Isolated), 1 Industrial DO (Isolated), 1 Industrial AI, 1 Industrial AO

ADC:

4 ADC Input 16 bit

UART

4 UART, Internal Integrated RS-485 & RS232

SPI

2 SPI, Internal Integrated ethernet and micro-SD card

I2C

2 I2C, Internal integrated with ADC 16bits and external RTC

CAN-Bus

1 CAN-Bus (need IC driver)

RS-485

1 Optional Modbus RTU

RS-232

1 RS-232 with DB-9 port

Ethernet

1 ethernet with RJ-45 port

USB-FS 2.0

1 x USB-FS with type-C port
