High-precision Monitoring Solution for Continuous Measurement of Groundwater

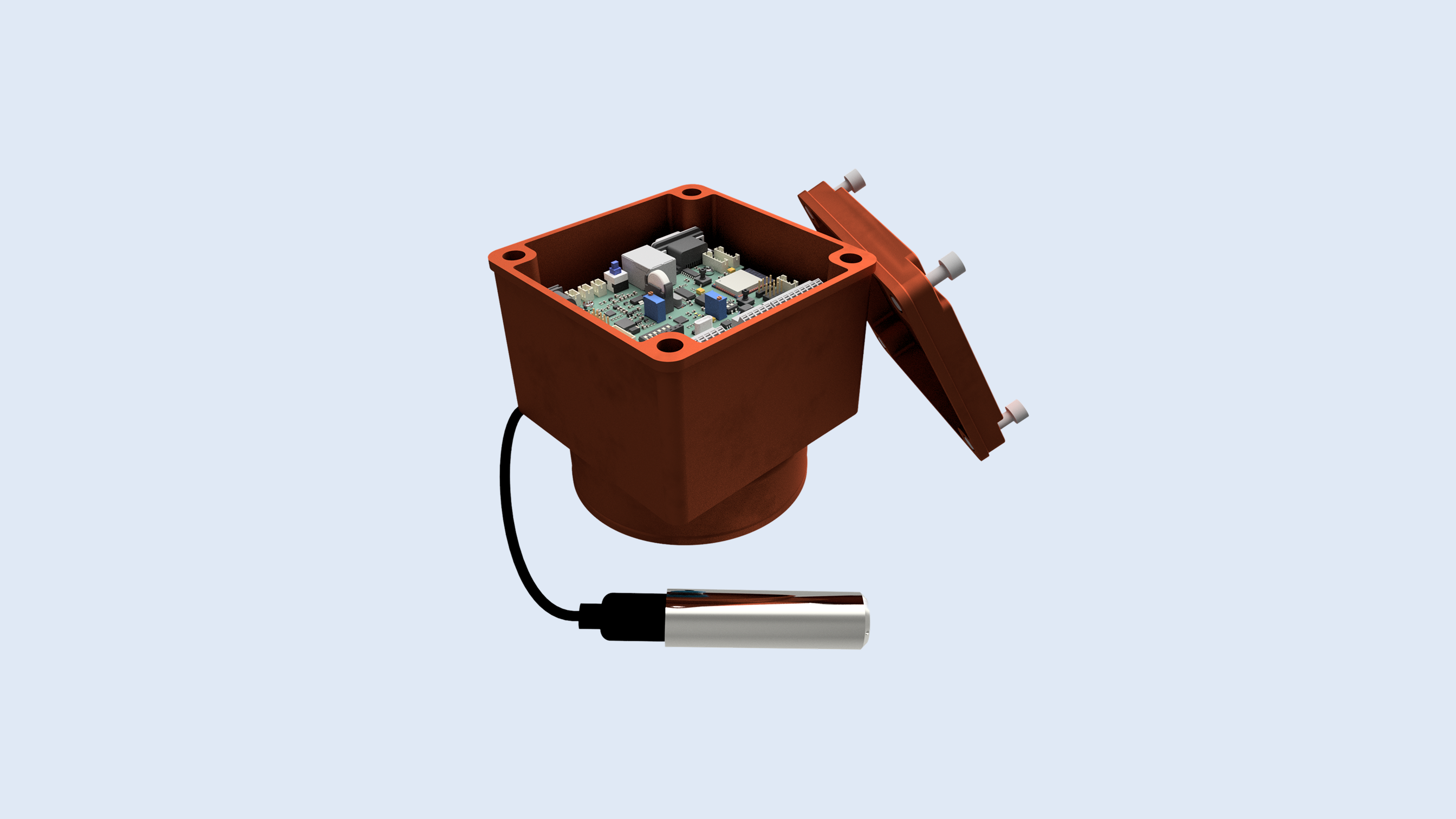

The Water Table Sensor is a rugged, high-precision monitoring solution designed for continuous measurement of groundwater or water table levels in wells, boreholes, and aquifer monitoring sites. It utilizes a submersible pressure transducer connected to a durable main module, enabling water level measurement up to 500 cm with ±0.5%FS accuracy.
With its 13,200mAh Li-Ion battery, the device supports multi-year deployments—up to 4.7 years on a 1-hour sampling schedule—making it ideal for long-term hydrological monitoring projects. Integrated Wi-Fi and Bluetooth 4.2 ensure easy configuration and data retrieval, while the 16GB onboard storage provides robust data logging even in remote or offline locations.
Its wide operating temperature range and modular mechanical design make the Water Table Sensor an excellent choice for environmental researchers, water resource managers, and sustainability-focused institutions looking for reliable and maintenance-free groundwater monitoring technology.
Dimension:
±125mm x ±125mm x ±135mm
Weight (Main Module):
±715 g
Weight (Sensor/ Transducer):
±565 g
Sensor Cable Length:
5m
Operating temperature:
-20°C to +50°C
Battery Type:
Li-Ion 13200mAh 3.7-4.2V
Battery Lifetime:
Up to 4.7 Years with Sampling Rate: 1 Hours
Storage:
16GB
Wifi:
2.4GHz, 802.11 b/g/n
Bluetooth:
Classic 4.2 (BR/EDR)
Submersible Level:
0-500cm
Accuracy
± 0.5%FS
